OBP master Cylinder

 obp Motorsport Remote Master Cylinder

Part Numbers :

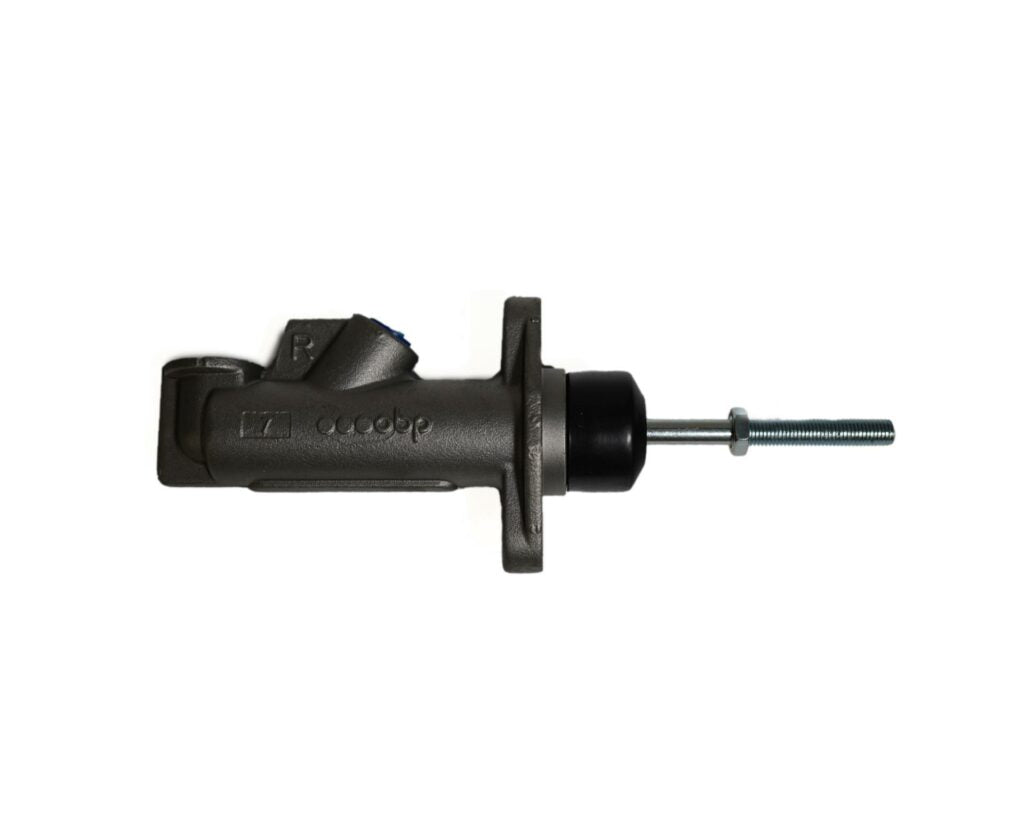

• OBPCB001: 0.700”

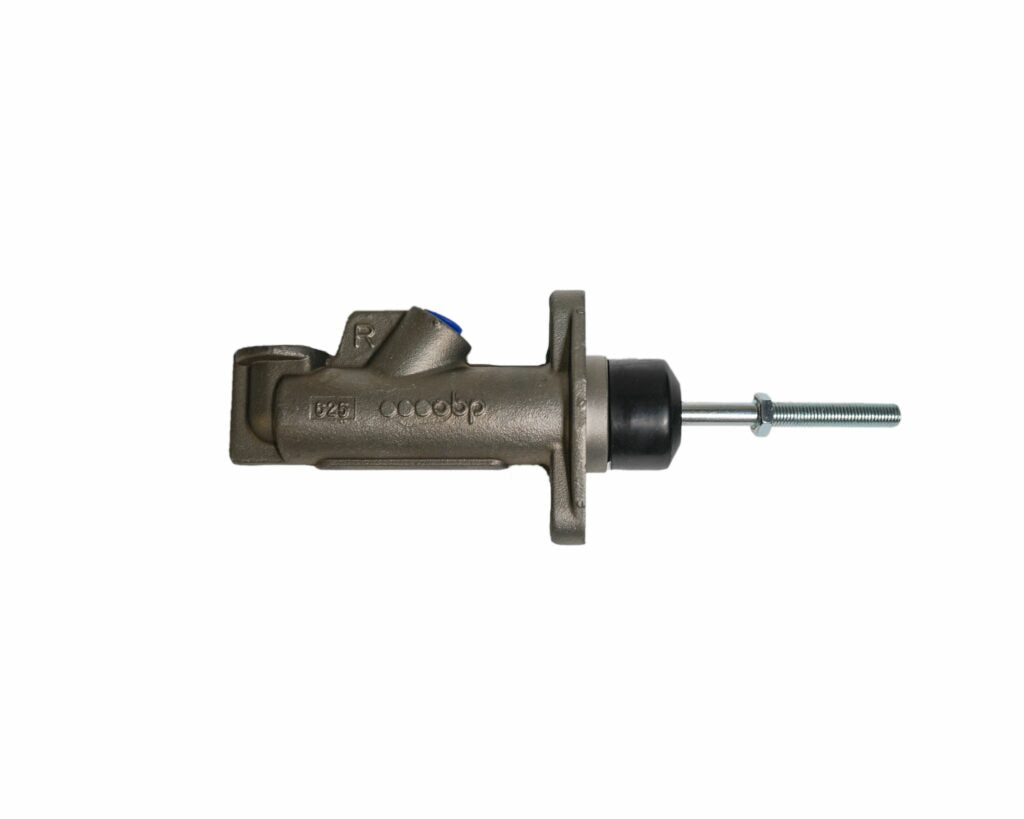

• OBPCB002: 0.625”

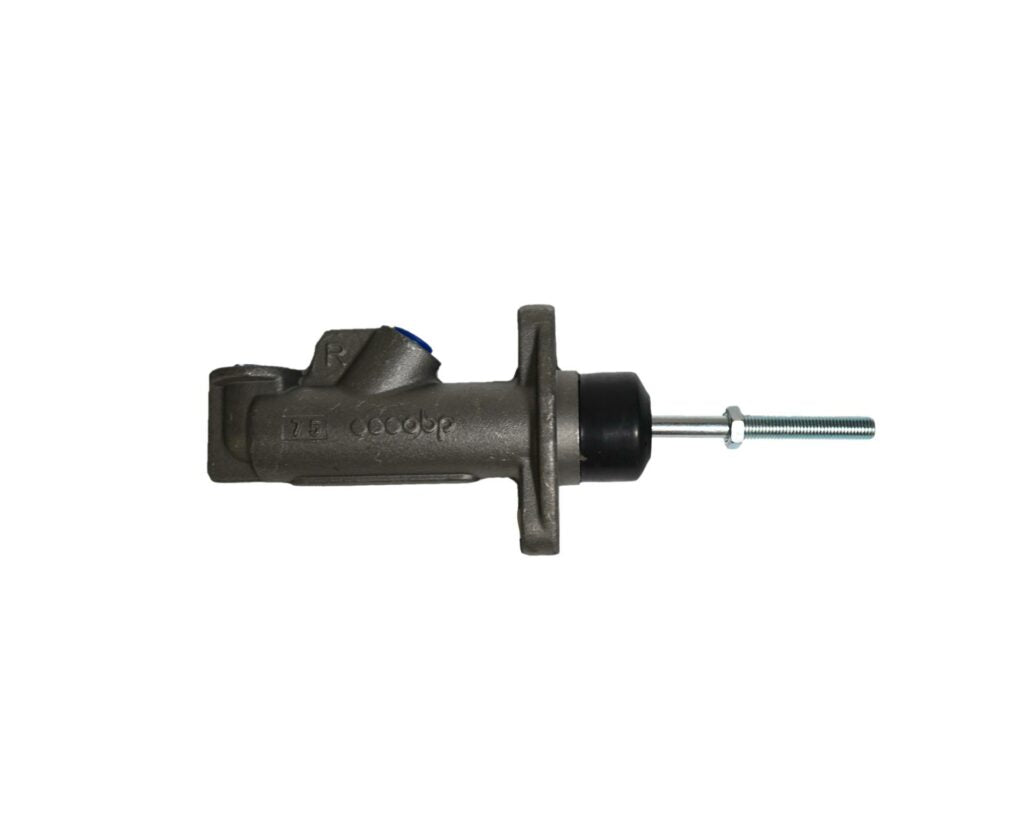

• OBPCB003: 0.750”

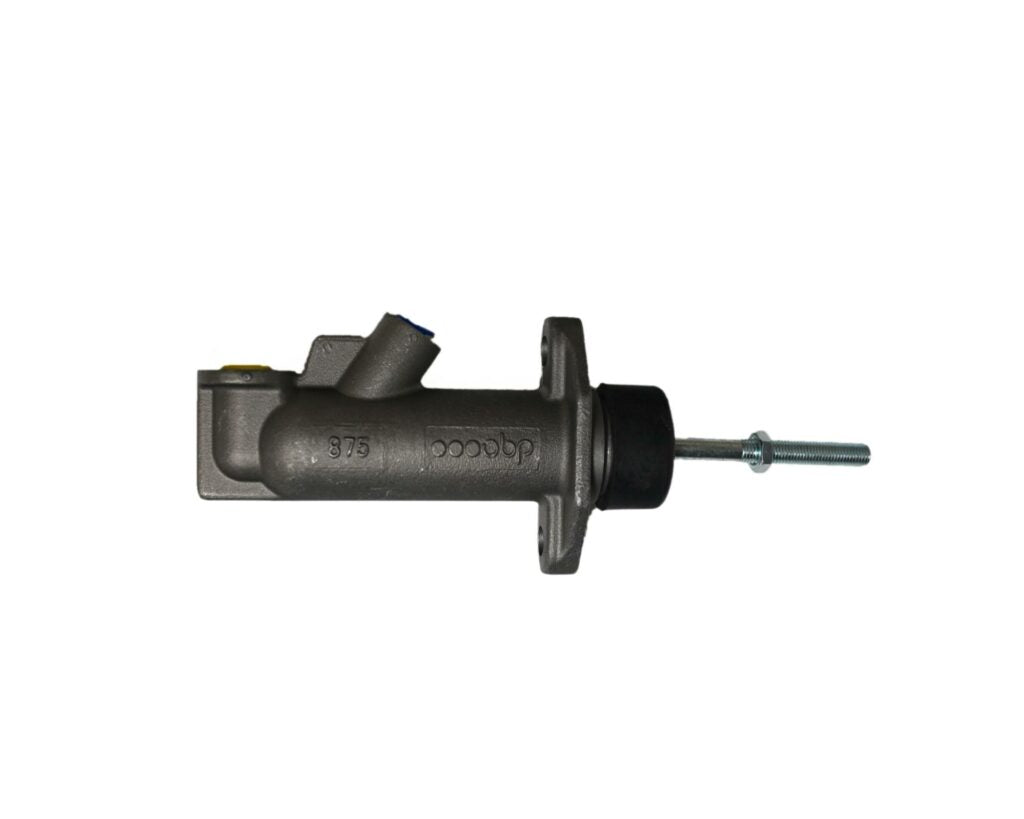

• OBPMCN15: 0.875”

Cast Aluminium

Vertical Mounting Flange

Universal Fitting

Use with remote or attachable fluid reservoirs

Product Information:

Inlet Fitting: 7/16″-20 UNF

Outlet Fitting: 3/8″-24 UNF

Push Rod Thread: 5/16″

Pushrod Length: 84mm

Bolt Hole Spacing: 1/4″

Piston Stroke Length:

.625 = 31.5mm

.7 = 31.5mm

.75 = 31.5mm

.875 = 34.7mm

Maximum Flow:

.625 = 6.22ml

.7 = 7.8ml

.75 = 8.97ml

.875 = 13.44ml

UNF Standard Master Cylinder Set Up:

Front Brakes: 0.625 | Rear Brakes: 0.7 | Clutch: 0.75
